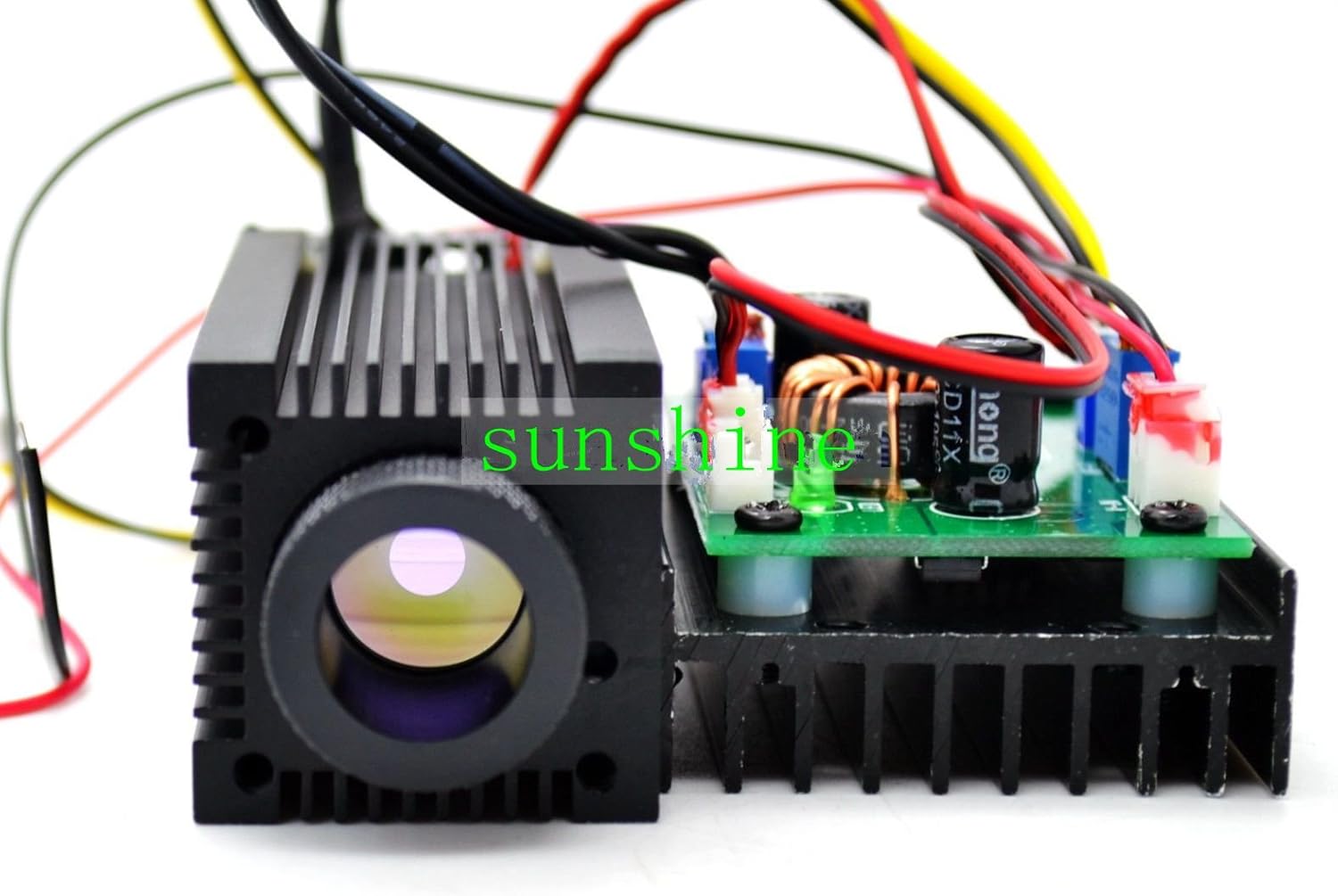

High Power 980nm W1.6 G-L1600 M W Focusable IR Infrared Laser Dot Module 12VDC w/ 2W Diode Laser

High Power 980nm W1.6 G-L1600 M W Focusable IR Infrared Laser Dot Module 12VDC w/ 2W Diode Laser Specifications: Output Power MW-1600 Wavelength 980nm Input Voltage 12VDC Working Current 2.5A Working Temperature -10 degrees- 30 degrees TTL >20KHz Divergence 5mrad Beam Diameter 6mm Focusable YES LD 980nm 2W Lens Glass Dimensions 33x33x80mm Working Life more than 5000 Hours Laser Shape DOT(The spot can be adjusted from rectangle to oval) Detail: 1. This laser module can not work for a long time if there is no cooling device to keep the laser working under 30℃. 2. Please add a 12VDC power to this laser module. Red wire connects”+” pole; Black wire connects ”-” pole. TTL 3-5V on, 0V off. If you don't use TTL, please just leave the blue and white wire. 3. This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust. 4. There is a potentiometer on the driver. You can turn it to adjust the power of the laser. Turn Clockwise to increase the laser power. Otherwise to decease the power. But the current can not surpass the current we have set up. 5.The modules are tested and the output power are measured by laser power meter before sending out.Please wear 980nm laser protection goggles to protect your eyes when working on this module. 6.It is IR laser,the laser light cannot be seen by human bare eyes with only using DDC/infrared camera get it.Buyers who buy IR lasers please make sure you know it. Package: 1 x High Power 980nm W1.6 G-L1600 M W Focusable IR Infrared Laser Dot Module 12VDC w/ 2W Diode Laser

• Output :MW-1600
• Wavelength 980nm
• Input Voltage 12VDC
• LD 980nm 2W
• Dimensions 33x33x80mm
