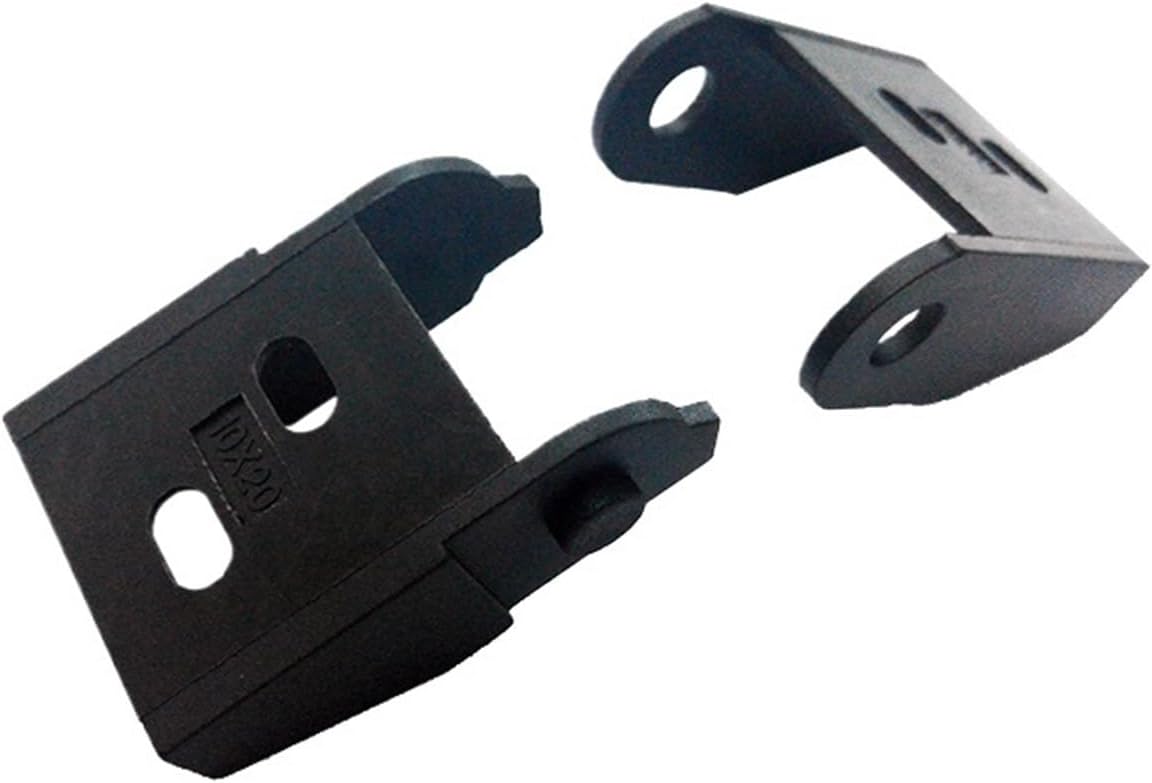

Transmission Chain of Power 10 Pairs 10x20mm Drag Chain Joints Connectors Plastic Towline Semi Closed Non Opening Cable Wire Carrier Transmission Chain of Power

10 Pairs of 10x20 Drag Chain Joints Semi closed non opening Connectors Plastic towline Cable Wire Carrier tanks chainTowline selection of main parameters:Within high: Select built-in cable, tubing, pipe, pipe, etc. As one of the most coarse reference height,plus at least 10% of the height of the space within the towline as high. If the overlap byoverlapping the actual height as the reference height.Wide: Choose thicker some cables, tubing, pipe, water pipes, with its outer diameter and as thetowline wide reference, and stay at least 10% of the width of the space.Bending radii R: choose built-in cable, tubing, pipe, pipe, etc. The maximum bending radius as a reference value, and left more than 10 percent of the space.Use towline length = R + 0.5R + stroke / 2After bending towline total height = 2R + external highTowline place principles: Should leave 15% of the remaining space for built-in cable, tubing, etc., may move freely in theradial direction of the towline does not produce tension. Larger diameter difference between thewire should be laid separately, weight distribution, if necessary, be separated by the dividing sheet.In the high-speed or high-frequency operation, to try to make the wires apart from each other on a level, do not make it mutually stacked more time in the cable, pipe, tubing, etc. is recommended touse separators.==========Hign-concerned Chemical : noneItem Type : Hardware Parts/Machine PartsMaterial : PlasticModel Number : Miniature Series 10Structure : Semi closed non openingJoint type : C TypeJoint hole pitch : A=10mm,B=5mmType for : 10X20Color : BlackProducts Status : Stock

• Model Number : Miniature Series 10
• Structure : Semi closed non opening
• Joint type : C Type
• Joint hole pitch : A=10mm,B=5mm
• Type for : 10X20
